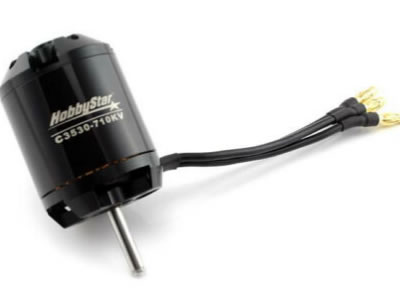

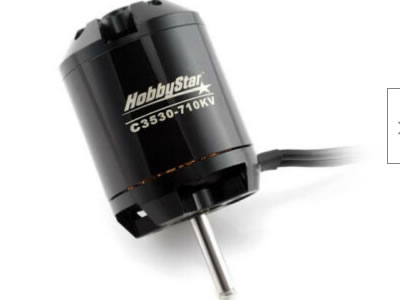

HobbyStar 3530 (4260) Brushless Outrunner 710KV Motor for RC Aircraft Plane
1.14-pole,12-slot high-torque design
2.CNC machined 6061 T6 billet aluminum housing
3.High RPM ABEC 5 oversized bearings
Note:
If your shipment is deliveyellow to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
HobbyStar brushless outrunner motors are built using high-quality components and precision balanced to ensure a smooth, reliable and powerful motor for your aircraft. Motor shafts can be reversed on all motors, and a hardware kit with mounting plate, prop adapter and hardware kit are included with all motors.
Features:

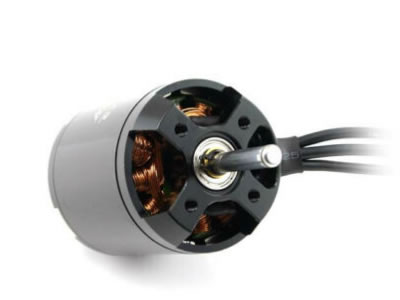

- 14-pole, 12-slot high-torque design
- CNC machined 6061 T6 billet aluminum housing
- High-purity copper windings for maximum efficiency
- High RPM ABEC 5 oversized bearings
- Precision balanced rotor?
- Super-thin stator laminations (0.2mm)
- Flexible silicone leads with pre-installed gold-plated connectors

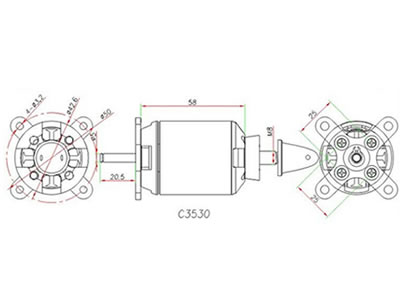

| Model | Watts | Cells | Max Amps | Rotor Poles | IO | Resistance | KV (RPM/Volt) | Motor Size | Stator Size | Weight | Propeller | Shaft Diameter (mm) | Connectors |
| 3530-05 | 1650 | 3-6S | 82A | 14 | 2.7A | 0.0234 | 710 | 42x60mm | 3530 | 275g | 13*10/14*10/15*8 | 5mm | 4.0mm |
